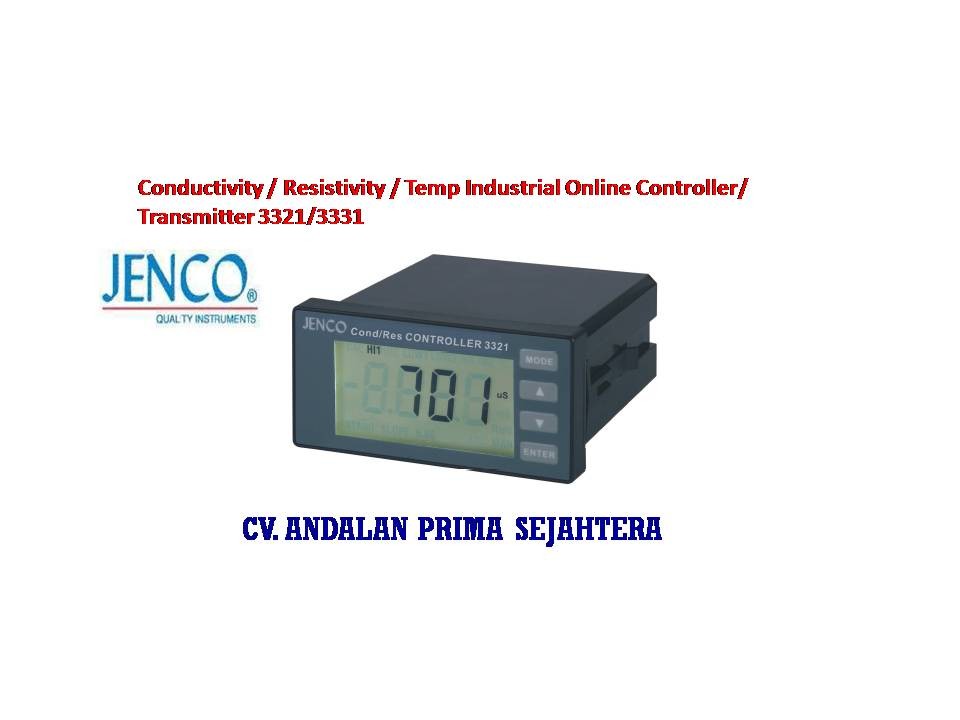

3321/3331 Conductivity / Resistivity / Temp Industrial Online Controller/ Transmitter
Brand : Jenco
Features
- Easy to install 1/8 DIN plastic casing.
- Clear LCD displays conductivity, resistivity or temperature with backlight.
- Universal power supply input from 100-240VAC.
- Automatic or manual temperature compensation.
- Two sets of programmable on/off relays for conductivity or resistivity (3321).
- Isolated and reversible 4-20mA current output for conductivity or resistivity allows it to be used as a proportional output (3331).
RoHS compliant.
-
SPESIFICATION :
Range : K=0.01cm-1 : 0.000~1.999uS/cm / 0.50~19.99Ω & 2.00~19.99uS/cm / 0.05~0.50Ω
Resolution : 0.001uS/cm / 0.01Ω & 0.01uS/cm / 0.01Ω
Accuracy : ±0.5%FS±1 digit
-
K=0.1cm-1 : 0.00~19.99uS/cm & 20.0~199.9uS/cm
Resolution : 0.01uS/cm & 0.1uS/cm
Accuracy : ±0.5%FS±1 digit
-
K=1.0cm-1 : 0.0~199.9uS/cm & 200~1999uS/cm & 2.00~19.99mS/cm
Resolution : 0.1uS/cm & 1uS/cm & 0.01mS/cm
Accuracy : ±0.5%FS±1 digit
-
Temperature : -10.0~120., Resolution : 0 0.1'C ,Accuracy : 0.3'C
Temperature Compensation Manual / Auto -10.0~120.0℃ (Thermistor, 10K ohm at 25.0℃).
Cell Constant 0.01, 0.1, 1.0 cm-1, 2 wire
Reference Temperature 25.0℃, factory set. T
emperature Coefficient 2.00 or 0.00 %, user selectable.
Control Type / Relay Output 2 ON/OFF controls / 5A at 115V AC or 2.5A at 220V AC, resistive load only.
Current Output Range / Scale(3631) 4 to 20 mA (isolated) / Liner
Maximum Load 500 ohm
Isolation Voltage 500 VDC
Display LCD, with backlighting.
Power 100~240V AC at 50/60 HZ.
Ambient Temperature Range From 0~50℃.
Case 1/8 DIN case, 90mm depth.
-
Accessories
-
392-122 K=0.01cm-1 range: 0~20uS/cm.
(stainless steel body, POM housing, NPT3/4’’ thread, 5 meters cable, with 10K thermistor).
-
392-126 K=0.1cm-1 range: 0~200uS/cm.
(stainless steel body, POM housing, NPT3/4’’ thread, 5 meters cable, with 10K thermistor).
-
392-125 K=0.1cm-1 range: 0~10mS/cm. (stainless steel body, POM housing, NPT3/4’’ thread, 5 meters cable, with 10K thermistor). 012-150-00 Waterproof enclosures
-
